»HYDRO-BLITZ«
Zenith 913 k VA F
Blockmaker
SOLD OUT NOW
wählen
message
to MEG
Year of Make: 1994
completely renewed 2005
NEUE BILDER
PICTURE-1
PICTURE-2
PICTURE-3
PICTURE-4

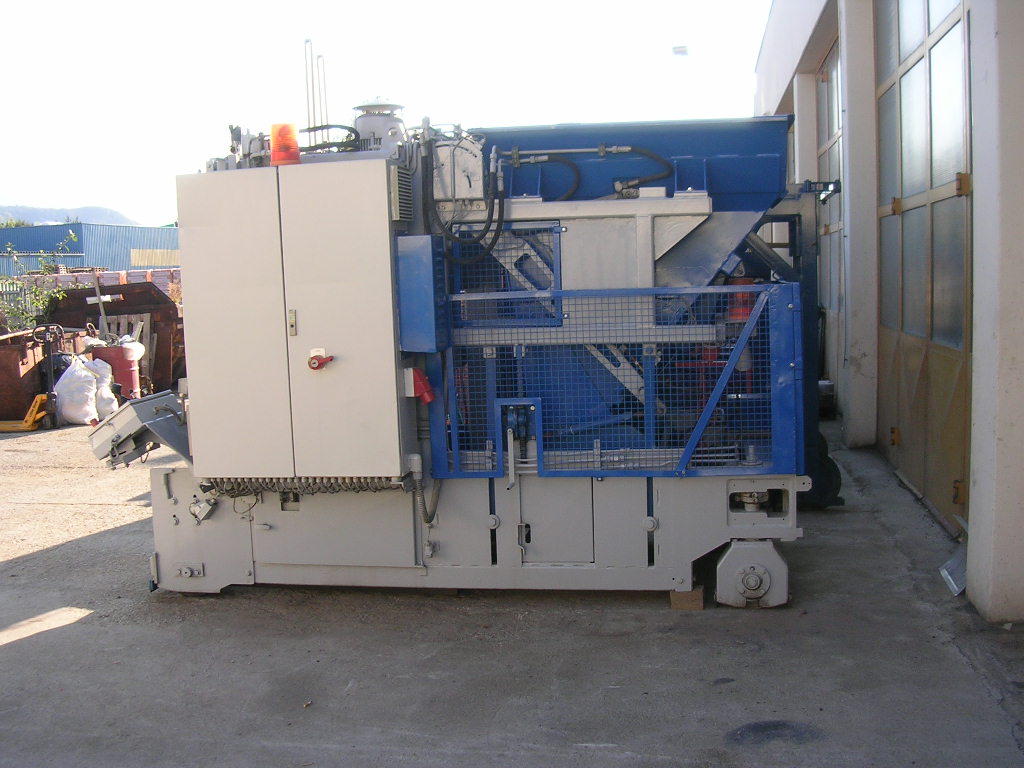

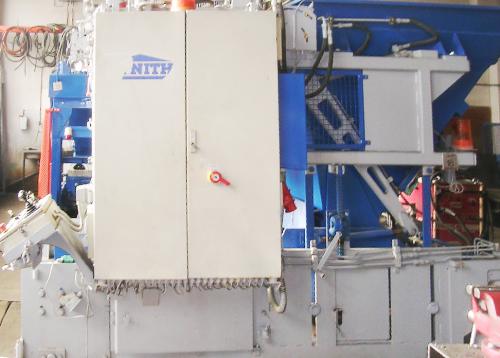

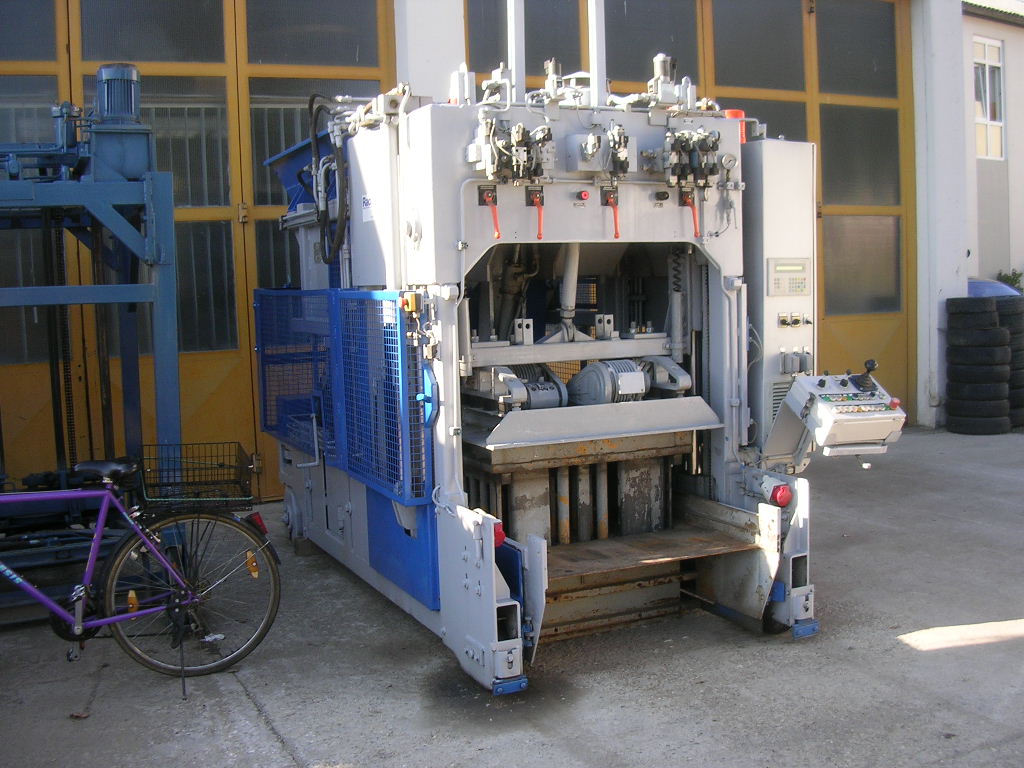

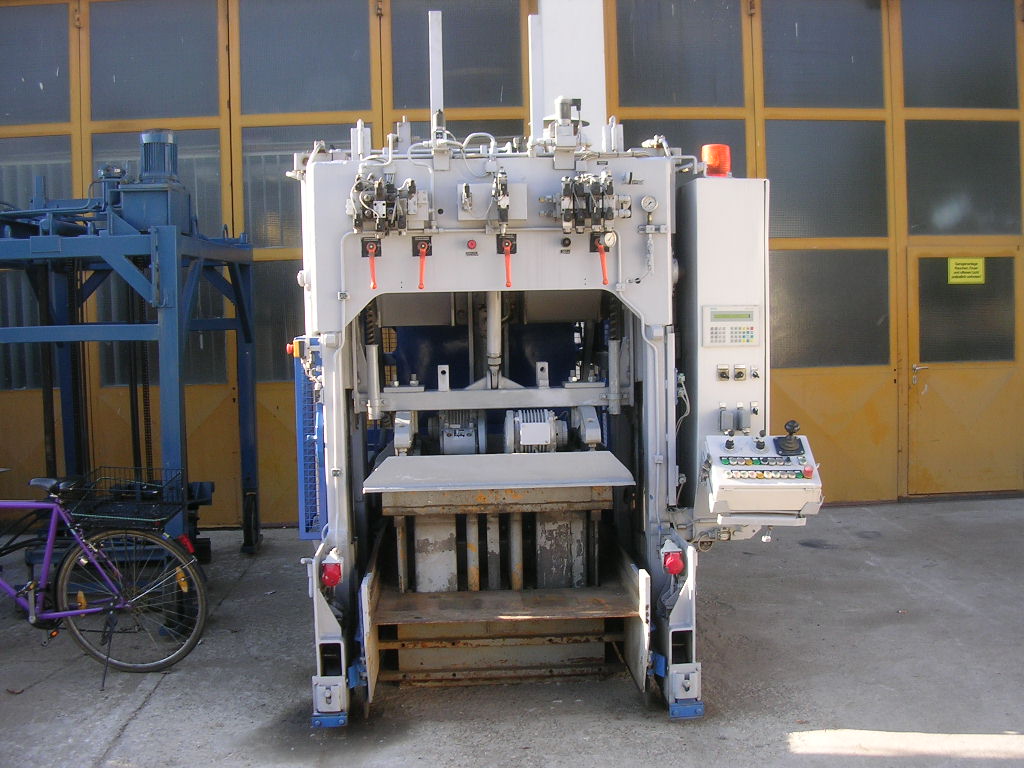

ZENITH CONCRETE BLOCKMAKER
»HYDRO-BLITZ« 913 K VA F
for fully automatic production.
Working area 1040 x 1000 mm
max. mould height 480 mm
max. product (block) height 330-340 mm
min. mould height 228 mm

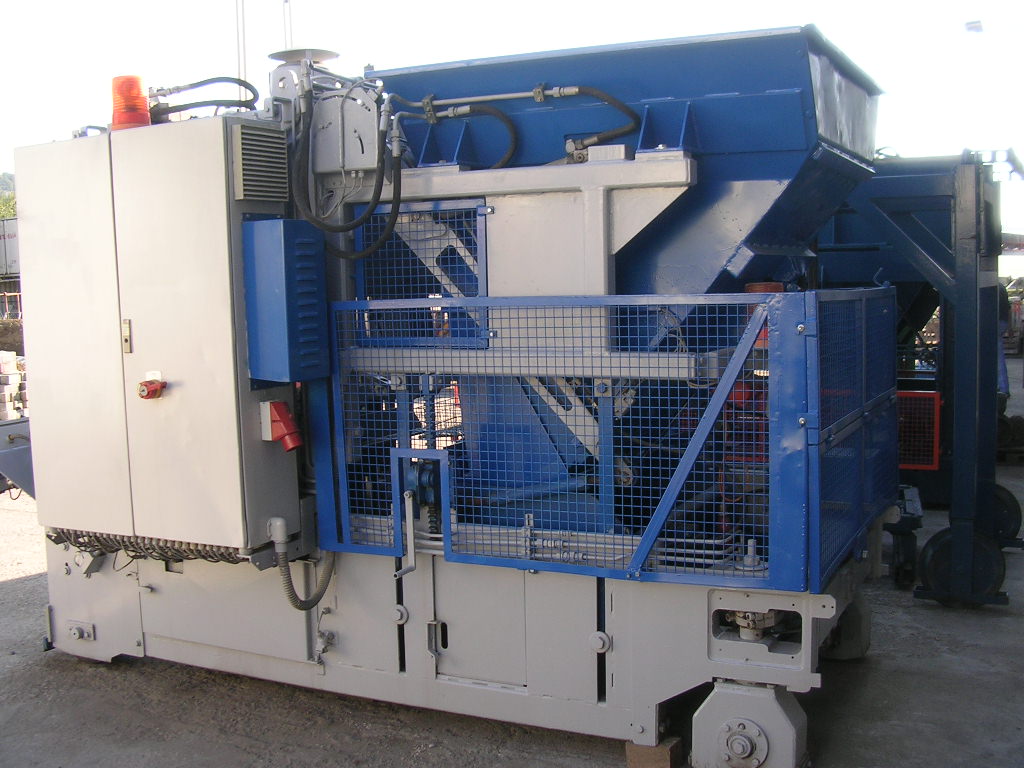

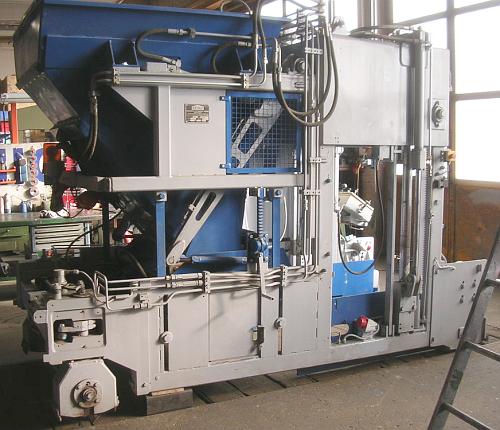

Concrete silo is a special version for
approx. 1500 l volume respectively max. 2500 kg concrete.
silo
with
vibrator.
Hydraulical
operated
drive
configuration
* hydraulic latching for upload
* The concrete silo, guidance table, filling cabin and
leverage axle are combined as a unit, that is adjustable
vertically together with a winch.
* hydraulic filling cabin,
* hydraulically actuated wiper,
* quad seated guidance table and mould guiding,
* synchronous movement of mould guaranteed by gear rods
and geared shaft.
* chrome-plated guide posts and tie bars,
* hydraulically actuated carriage with
variable speed
28 cm/sec. - usual at work,
56 cm/sec. - driving backward,
1,4 cm/sec. - for slow driving,
* preinstalled for upload vibrator equipment,
* various timers to preset the desired vibration times,
* Light sensitive distance meter to preselect the exact production
production street or alternatively
* drive related to preselected timer relay (fine steps appr. 0,3 sec.)
* non-touch limit switch.
security
covers

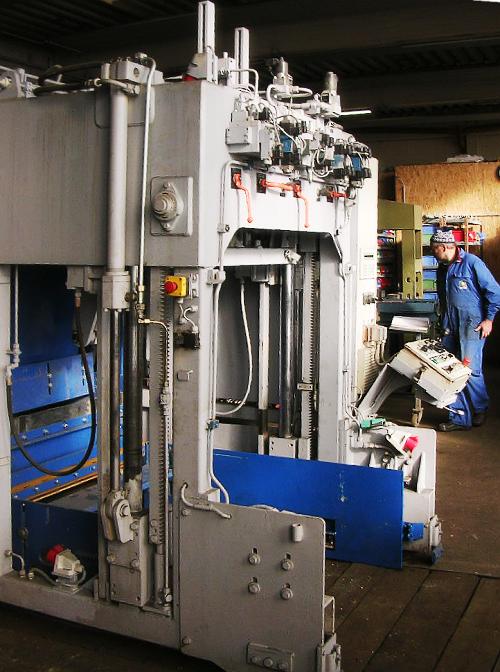

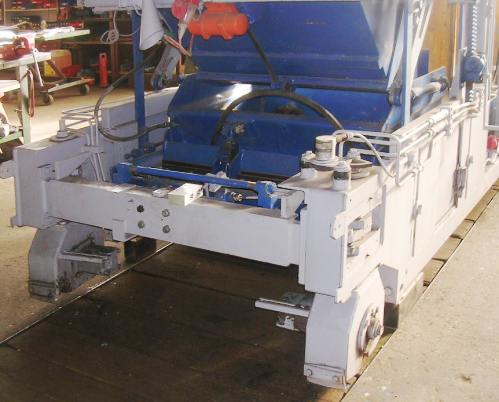

Carriage
with
hydraulic
motors
and
steering
mechanism

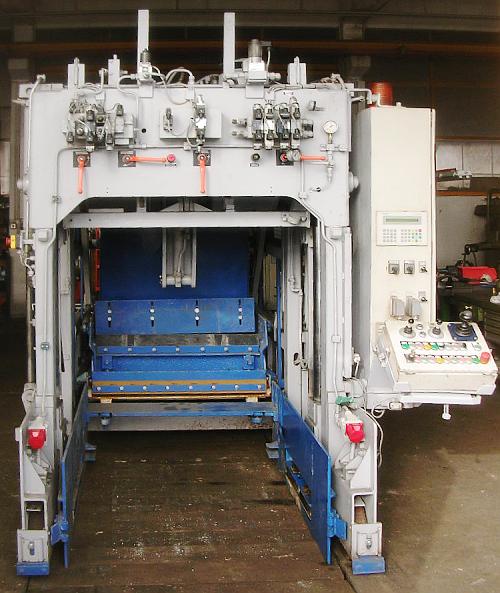

view w/o
mould and
vibrators

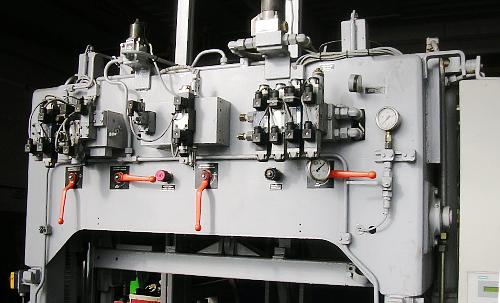

hydraulic
control
valves
equipment:
* Open time of the concrete silo flap controlled by a adjustble timer
relay to control the flap opening width.
* comfortable moulds installation dimensions as KNAUER KOMET
(screwless quickchange, 2 bolts only),
* hydraulic fine sinking at final phase
(approximately 30 - 40 mm)
* counter for clocks per day and total
* footboards for easy cleaning of the silo
* variable 3phase frequency drive for upload vibrator motors.
* main upload panel made as special design.
* running wheels covered with Vulkollan,

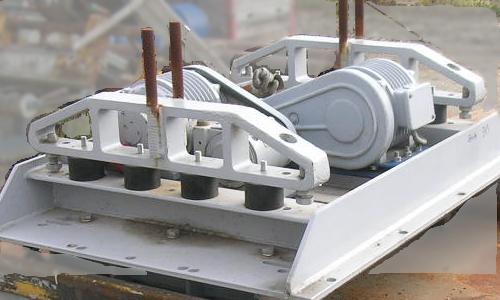

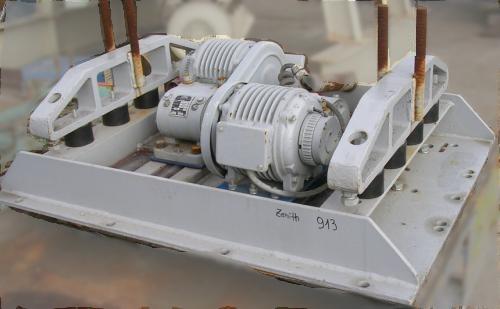

* 2 pcs. upload vibrators,
* 1 set of mould vibrator,
1 chimneyblock mould is built in for delivery.
option: additional moulds at visitation and order.

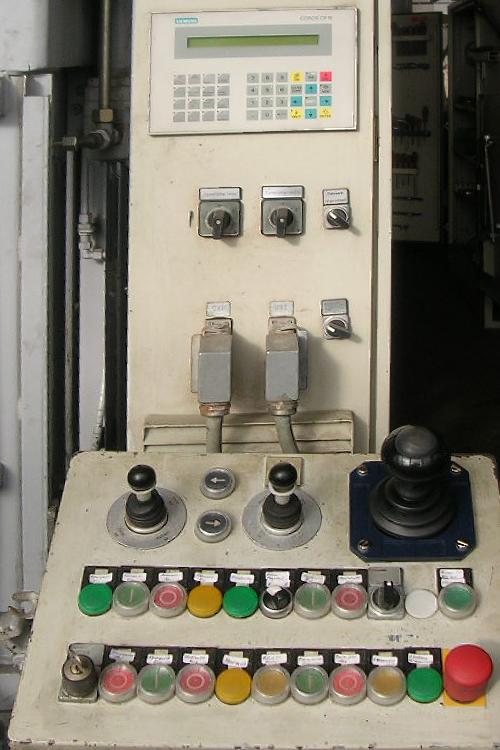

operator-
panel
and
desk console

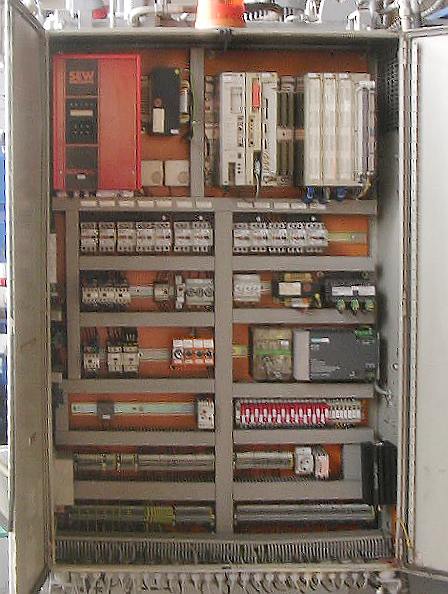

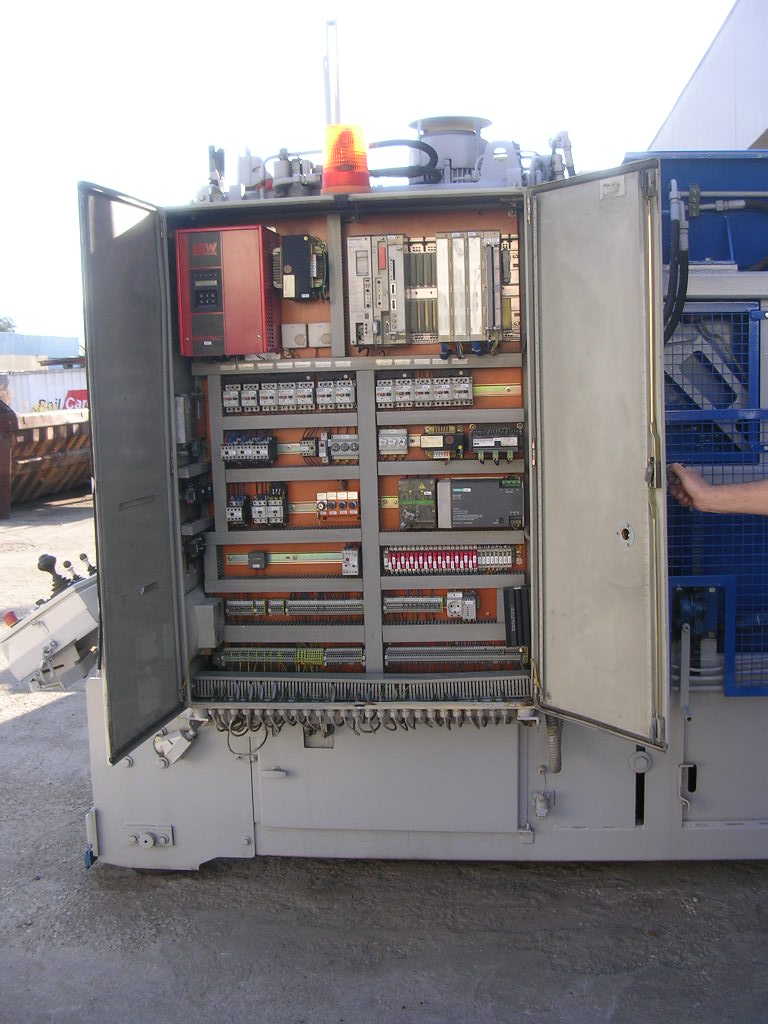

cabinet
with
variable
frequency
3-phase
equipment,
Siemens-PLC,
main-switch,
and more
vibrator
vibrator
